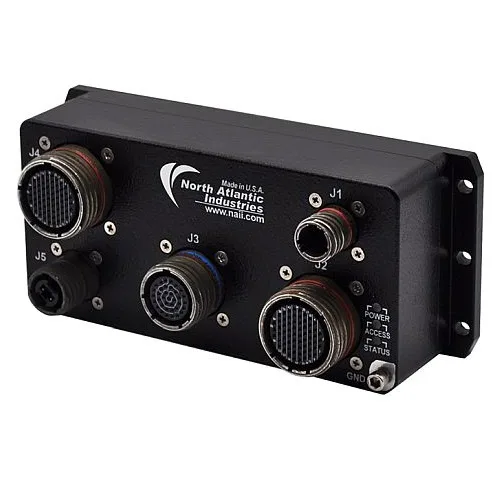

NIU2A-ES2 | Rugged Ethernet Switch

The NIU2A-ES2 is a small, rugged, low-power, self-contained Rugged Ethernet Switch system. It is powered by an integrated MIL-STD-704A (designed to meet) power supply.

Description

NIU2A-ES2 | Rugged Ethernet Switch

  • Supports ES2 Managed Switch Module

    • 16x 10/100/1000Base-T (Gigabit Ethernet) ports
    • 4x Fiber Optic (10 Gb @ 850 nm) option
    • 1x Gigabit Ethernet and 1x RS-232 for maintenance
  • Minimized SWaP footprint

    • ~7.0″ x 3.0″ x 2.5″ (including connectors)
    • ~2.75 lbs (1.25 kg)
    • 28 VDC input @ ~1.0 A Operating
  • High-Performance Ethernet Switch

    • Full auto-negotiation and auto-MDIX
    • IEEE 802.3ab (1000Base-T Gig-E)
    • IEEE 802.3u (100Base-TX Fast Ethernet)
    • IEEE 802.3i (10Base-T Ethernet)
    • IEEE 802.3x (Flow control/full and half-duplex)
  • L2+ / L3 Management

    • Transparent bridging
    • VLAN aware bridging
    • Rapid Spanning Tree Protocol
    • Multiple Spanning Tree Protocol
  • Quality of Service (QoS) and Security Features
  • Continuous Background BIT (Pending)
  • VICTORY Interface Services (Contact Factory)
  • Rugged applications*

    • MIL-STD-810G
    • MIL-STD-461F
    • MIL-STD-704A (Designed to meet)
    • Operating temp: -40° to +71° C
    • Conduction-cooled and Convection/Air-cooled options (Contact Factory)
  • *Designed to meet. Characterizations pending. EMI/EMC requires shielded cables and proper grounding practices. Specifications subject to change without notice.

Additional Information:

The NIU2A-ES2 is a small, rugged, low-power, self-contained Rugged Ethernet Switch system. It is powered by an integrated MIL-STD-704A (designed to meet) power supply. It is a Layer 3, fully managed switch providing sixteen (16) 10/100/1000Base-T (GbE) Ethernet ports and four (4) optional 10 Gb 850 nm multimode fiber-optic ports. Additionally, there is one GbE and one RS-232 port for maintenance / configuration interface. The NIU-ES2 supports Open Systems Interconnection (OSI) model data link (L2) and network (L3) layer, quality of service (QoS) and security features. Ideally suited for rugged Mil-Aero applications, the NIU2A delivers off-the-shelf solutions that accelerate deployment of SWaP-optimized systems in air, land and sea applications.

The NIU2A-ES2 rugged switch provides scalable Ethernet links enabling networks including on-board vehicle, marine and aircraft platforms to field and expand digital network architectures for network-centric operations. The NIU2A-ES2 fits seamlessly in NAI’s Configurable Open Systems Architecture™ (COSA®) providing the most modular, agile and rugged COTS portfolio of embedded smart modules, I/O boards, Single Board Computers, Power Supplies and Ruggedized Systems.
