KAM/CHS/03U | 3 Slot Data Acquisition System

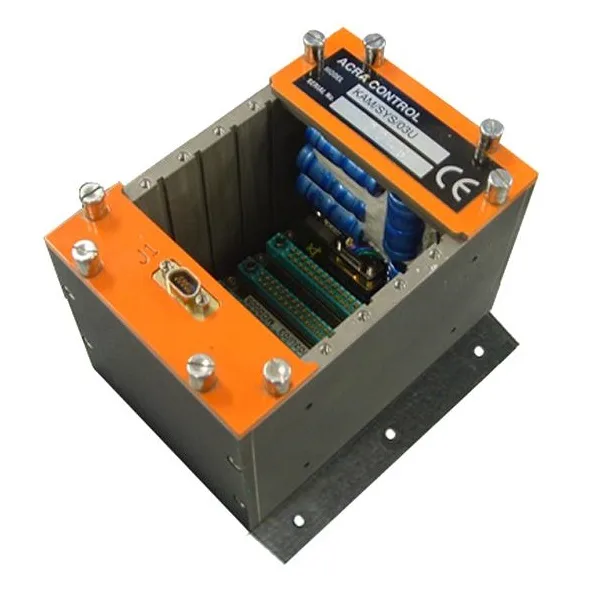

The KAM/CHS/03U/LSM is a compact three user-slot Acra KAM-500 chassis, which along with the housing and backplane, includes a power supply module which regulates power supplies to the backplane (isolated 28V nominal in).

Description

KAM/CHS/03U | 3 Slot Data Acquisition System

  • Power supply unit and three user-slots
  • 18 to 40VDC isolated power supply
  • Rugged aluminum housing
  • 8MHz x 16-bit digital backplane
  • Operates as master or slave in distributed system
  • LED power-on indicator

Link to Supplier Page:

http://www.cwcdefense.com/products/flight-test/data-acquisition/chassis/kamchs03u.html

Available Data Acquisition Modules:

http://www.cwcdefense.com/products/flight-test/data-acquisition/modules/

Additional Information:

The KAM/CHS/03U/LSM is a compact three user-slot Acra KAM-500 chassis, which along with the housing and backplane, includes a power supply module which regulates power supplies to the backplane (isolated 28V nominal in).

LSM in this data sheet refers to Long Side Mounting. The backplane has three connectors for user-modules, which are polarized to prevent the insertion of the backplane controller module. The backplane distributes power and connects address, data and control lines to the user-modules. The only ICs on the backplane are demultiplexers for user-module select signal. Any user-module can be placed in any user-slot in any combination. 2.0A is available for bridge excitation.
