64ARM1 | 6U VME ARM Coretex-A9 Single Board Computer

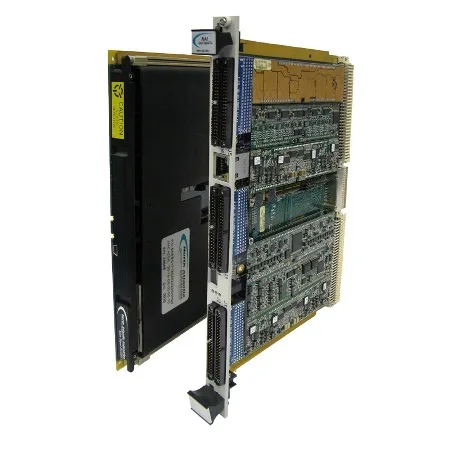

The 64PPC1 is a 6U VME ARM Cortex-A9 single board computer that can be configured with up to six intelligent function modules for specific I/O requirements.

Description

64ARM1 | 6U VME ARM Coretex-A9 Single Board Computer

  • Compact 6U VME SBC with support for 6 independent, intelligent function modules
  • 40+ modules to choose from
  • Independent x1 SerDes interface to each function module slot
  • COSA™ Architecture
  • Freescale™ QorIQ P2041 Quad-Core e500mc Processor @ 1.2 GHz
  • Up to 8 GB DDR3L SDRAM
  • Up to 32 GB SATA II NAND Flash (256 GB expansion option in slot #2)
  • < 25 W MB power dissipation
  • Front and/or rear I/O
  • 2x 10/100/1000 Base-T Ethernet; 2 to rear, or 1 to rear and 1 to front I/O
  • 2x USB 2.0, 1 to front and 1 to rear I/O
  • 1x RS232 to front or rear I/O
  • I2C Bus to rear I/O
  • Factory configurable Video Output: HDMI, DVI, LVDS, or VGA
  • Wind River® Linux and VxWorks®, OS support
  • Intelligent I/O library support available
  • Continuous Background Built-in-Test (BIT)
  • VICTORY Interface Services (contact factory.)
  • Commercial and rugged versions
  • Operating temperature: 0°C to +70°C commercial, or -40°C to +85°C rugged

Additional Information

Customer-configurable 6U VME ARM SBC
NAI’s 64ARM1 is a 6U VME ARM® Cortex®-A9-based, Single Board Computer (SBC) that can be configured with up to six intelligent function modules. Ideally suited for rugged defense, industrial, and commercial applications, the 64ARM1 delivers off-the-shelf solutions that accelerate deployment of SWaP-optimized systems.

Adaptable Architecture
NAI’s Custom-On-Standard-Architecture™ (COSA™) offers a choice of over 40 intelligent I/O, communication, and Ethernet switch functions, providing the highest packaging density and greatest flexibility of any 6U VME SBC in the industry. Pre-existing, fully-tested functions can be combined in an unlimited number of ways quickly and easily. Each I/O function has dedicated processing, unburdening the SBC from unnecessary data management overhead.

The ARM® Cortex®-A9 processor is a low power, cost-sensitive, multi-core processor delivering exceptional levels of perfromance and power efficiency with all the functionality required in rugged, embedded SWaP-optimized programs for the defense and aerospace industries.

Background Built-In-Test (BIT)
BIT continuously monitors the status of all I/O during normal operations and is totally transparent to the user. SBC resources are not consumed while executing BIT routines. This simplifies maintenance, assures operational readiness, reduces life-cycle costs and— keeps your systems mission ready.

Board Support Package (BSP) and Software Support Kit (SSK)
The 64ARM1 includes BSP and SSK support for Wind River® Linux and VxWorks®, and for Xilinx® PetaLinux. In addition, SSKs are supplied with source code and board-specific library I/O APIs to facilitate system integration.
